The Z390 UD is a product in the category Computers and accessories, specifically of type Motherboard. We have listed 2 manuals of types User Manual, Installation Guide for product Motherboard Gigabyte Z390 UD. We have also listed 77 specifications for product Motherboard Gigabyte Z390 UD. Have a question about product Gigabyte Z390 UD and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manuals of product Z390 UD

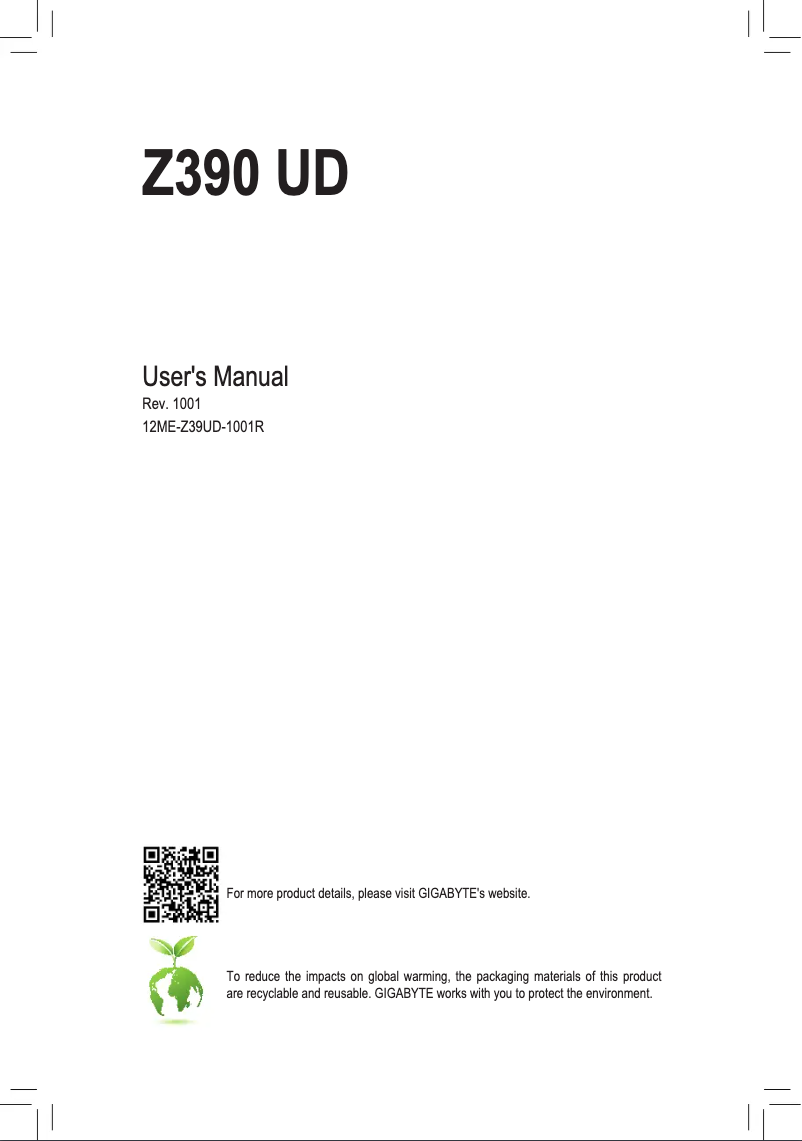

First page image of the manual for Z390 UD

User Manual
48 pages
View manual
First page image of the manual for Z390 UD

Installation Guide
20 pages
View manual

Technical Specifications Z390 UD

General Information

Processor

  • Processor manufacturer
    Intel
  • Compatible processors
    Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
  • Processor socket (processor receptacle)
    LGA 1151 (Socket H4)

Memory

  • Supported memory types
    DDR4-SDRAM
  • Type of support (slot)
    DIMM
  • Number of housing units for reference
    4
  • Memory channels
    Dual channel
  • Maximum internal memory
    64 GB
  • Non-ECC
    Yes
  • Supported the memory module capabilities
    16GB
  • Support for memory clock speed
    2133,2400,2666 MHz
  • Non-ECC
    Yes

Storage controller

  • Supported storage drive types
    HDD & SSD
  • RAID Levels
    0, 1.5, 10

Internal I/O

  • TPM connector
    Yes
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    0
  • TPM connector
    Yes
  • Number of SATA III connectors
    6
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    0
  • TPM connector
    Yes
  • Number of connectors for the case fan
    3
  • TPM connector
    Yes
  • TPM connector
    Yes
  • TPM connector
    Yes
  • Series headsets
    1
  • Series headsets
    1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
    0
  • TPM connector
    Yes
  • Series headsets
    1
  • TPM connector
    Yes
  • Series headsets
    1

Network

  • Ethernet/LAN
    Yes
  • Type of Ethernet interface
    Gigabit Ethernet

Features

  • Component for
    PC
  • Product component family
    Intel
  • Motherboard form factor
    ATX
  • Audio output channels
    7.1 channels
  • Motherboard chipset
    Intel Z390
  • Support for the Windows operating system
    Windows 10
  • Audio chip
    Realtek ALC887

BIOS

  • BIOS Type
    UEFI AMI
  • Memory capacity of the BIOS
    16 Mbit
  • ACPI Version
    5.0
  • System Management BIOS (SMBIOS) version
    2.7
  • System Management BIOS (SMBIOS) version
    2.7
  • CMOS erase driver
    Yes

Graphique

  • Parallel Processing Technology
    2-Way CrossFireX
  • Quad-GPU CrossFireX

Extension connectors

  • PCI Express x16 slots
    3
  • PCI Express x16 slots
    3
  • Number of M.2 slots (M)
    1

Other features

  • Serial port via internal connector
    Yes

Back panel of I/O ports (Input/Output)

  • Number of PS/2 ports
    2
  • Headset output
    1
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports
    6
  • Headset output
    1
  • Headset output
    1
  • Microphone jack input
    Yes
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0
  • Quantity of DVI-D ports
    0

Special features of the processor

  • Intel® Optane™ Memory Ready
    Yes

Weight and dimensions

  • Width
    305 mm
  • Depth
    230 mm

Packaging contents

  • Provided software
    Norton® Internet Security
  • Realtek® 8118 Gaming LAN Bandwidth Control Utility
